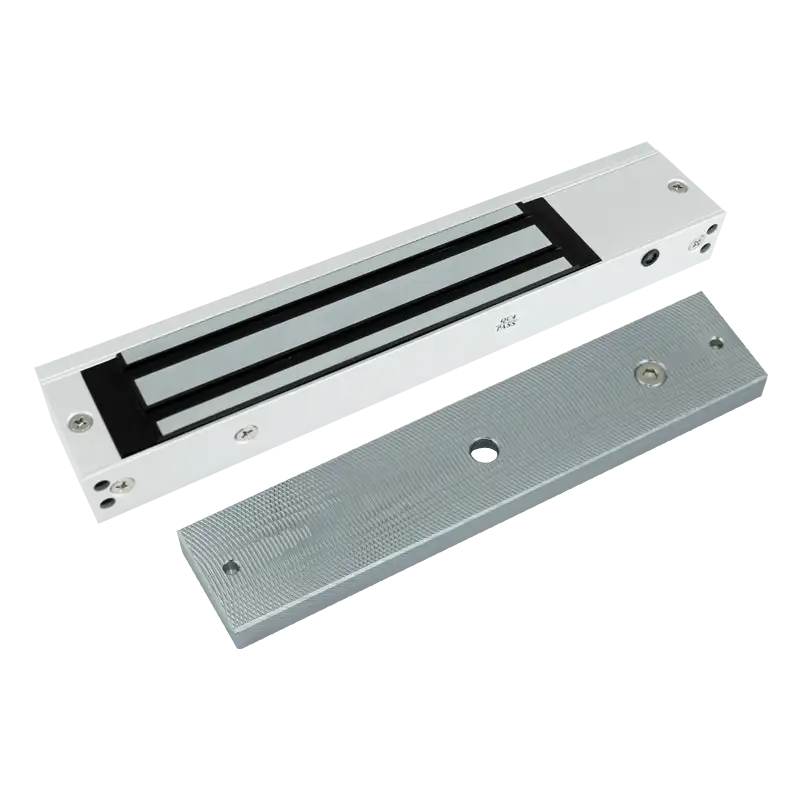

DW230ML 600lbs Waterproof Magnetic Lock Single Door Access Control with Door Status Signal
The DW230ML waterproof electromagnetic lock is designed for a wide range of door types, including glass doors, wooden doors, metal doors, fire-rated doors, and sliding doors. It is suitable for both inward-opening and frameless glass doors, with compatible accessories available for narrow frames and various installation requirements.
5.0
Brand:
YGS
MOQ:
1pcs
Warranty:
2years
Certifications:
ISO9001,CE, RoHS
Holding Force:
258kg(568lbs)
Production & Delivery:
Optimized output, cost-efficient, 7-15d sample delivery
Customization Capability & Scope:
R&D, material options, custom packaging
Quality Management:
Rigorous testing, CE/RoHS certified, high stability
Shipment Port:
Zhongshan
Payment Terms:
30% deposit, 70% before shipment (T/T accepted)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Required Products
Total price discount:
Product Overview
Its key advantage is the waterproof design. Through sealed construction and anti-corrosion treatment, the lock maintains stable current transmission and electromagnetic performance even in wet or humid environments. The anti-residual magnetism design also ensures smooth unlocking and reliable operation in daily use.
IP65 Waterproof
258kg Holding
Single Door
Fail-Safe
Product Features
IP65 Waterproof Design
Reliable performance in wet environments
600 lbs Holding Force
Strong and stable locking
DC12V / DC24V Selectable
Flexible power input
Default 12V Setting
Standard factory configuration
Anti-Residual Magnetism
Smooth unlocking, no sticking
Anodized Aluminum Housing
Durable and corrosion resistant
Signal Output (NO / NC / COM)
Real-time door status monitoring
Applications
Typical applications include office buildings, commercial entrances, residential properties, industrial facilities, and areas requiring waterproof access control solutions, such as outdoor gates, parking areas, and humid environments.
Applicable Scenarios
Applicable Scenarios
Applicable Scenarios
| Specifications & Certifications | ||
|---|---|---|
| Item | Specification | Remark |
| Model | DW230ML | Waterproof single door electromagnetic lock |
| Lock Body Size | 250 × 48 × 28 mm | Standard size |
| Armature Plate Size | 180 × 38 × 12 mm | Standard plate |
| Holding Force | ≥272kg (≈600 lbs) | Stable locking performance |
| Input Voltage | DC12V / DC24V | Flexible installation |
| Operating Current | 12V / 510mA; 24V / 255mA | Energy efficient |
| Power Consumption | 6.1W (12V / 24V) | Stable power usage |
| Peak Current | ≤2.5A | Stable start-up |
| Signal Output | Door status signal (NO / NC / COM) | Real-time monitoring |
| Door Type | Wood / Glass / Metal / Fire-rated doors | Wide application |
| Surface Temperature | Ambient +20° C | Normal operation |
| Operating Temperature | -10° C to +55° C (14° F to 131° F) | Indoor & semi-outdoor use |
| Operating Humidity | 0 – 90% RH (non-condensing) | Standard environment |
| Finish | Anodized matte silver | Corrosion resistant |
| Lock Body Treatment | Eco-friendly zinc plating | Durable protection |
| Armature Plate Treatment | Eco-friendly zinc plating | Wear resistant |
| Product Weight | 1.9 kg | Lightweight design |
| Waterproof Rating | IP65 | Suitable for outdoor use |
