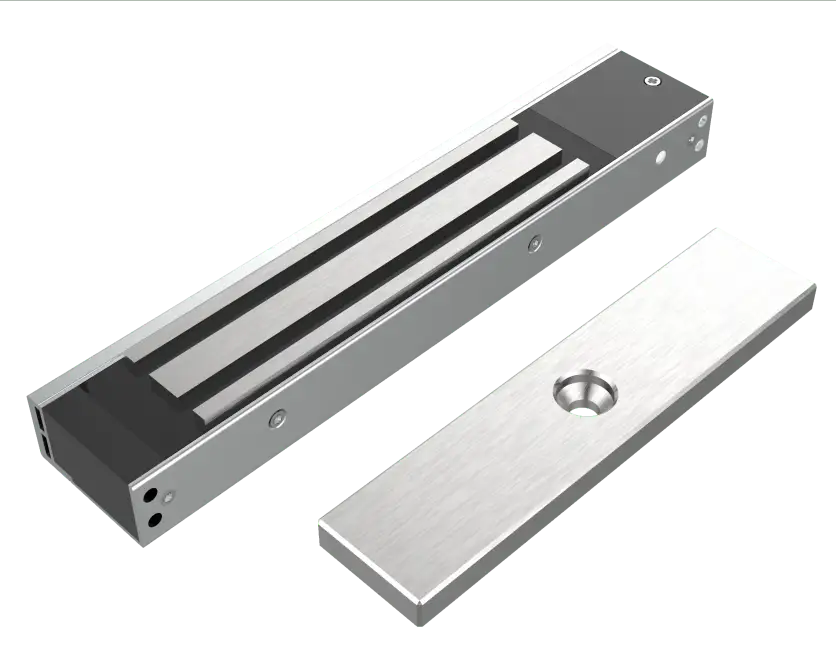

Durable Electromagnetic Lock DE200M Anodized Silver without Signal For Single Door Use
Product Overview
Featuring a specialized anti-residual magnetism design, it ensures smooth door release while improving overall access control safety. In addition, its reliable performance and flexible installation help reduce setup complexity, making it a practical and cost-effective solution for various security systems.
Product Features
Broad Applicability
The YGS-DF single-door fireproof electromagnetic lock is commonly used in single-door locations such as office glass doors, emergency exits, and warehouse entrances and exits. Its design of automatically unlocking when power is off and low energy consumption is particularly suitable for long-term unattended environments. The waterproof and fireproof lock body structure ensures high durability, easy installation and high compatibility. The double-layer insulated magnetic drive design eliminates mechanical failure problems by relying on electromagnetic force drive, ensuring high security and durability of the lock.
| Specifications & Certifications | ||
|---|---|---|
| Parameter | Specification | Remark |
| Model | DE200M | Standard type |
| Lock Body Size | 238 × 47 × 28 mm | Length × Width × Thickness |
| Armature Plate Size | 165 × 38 × 10.5 mm | Matching armature plate |
| Holding Force | 220kg ±20% | High magnetic holding force |
| Voltage | DC 12V | Stable voltage input |
| Working Current | 380mA | Rated operating current |
| Inrush Current | ≤2.5A | Peak startup current |
| Signal Output | None | No status feedback signal |
| Door Type | Wooden, Glass, Metal, Fire Door | Wide compatibility with multiple door types |
| Surface Temperature | ≤ Ambient +20°C | Safe operation with low heat generation |
| Operating Temperature | -10°C ~ +55°C (14°F ~ 131°F) | Wide operating temperature range |
| Humidity | 0–90% RH | Electroplated anti-corrosion protection |
| Housing Finish | Anodized Sandblasted Silver | Corrosion-resistant surface treatment |
| Lock Body Finish | Eco Zinc Plating | Durable surface treatment |
| Armature Finish | Eco Zinc Plating | Anti-corrosion surface treatment |
| Weight | 1.7kg | Standard net weight |
| Protection Level | IPX0 | For indoor use only |
| Packing List | |||
|---|---|---|---|
| No. | Part Name / Item | Quantity | Remark |
| 1 | Lock Body | 1 | — |
| 2 | Armature Plate | 1 | — |
| 3 | Mounting Accessories Kit | 1 | Full set of mounting hardware included |
| 4 | Armature Plate Positioning Installation Sticker | 1 | For installation positioning |
| 5 | Product User Manual | 1 | Includes product qualification certificate |
