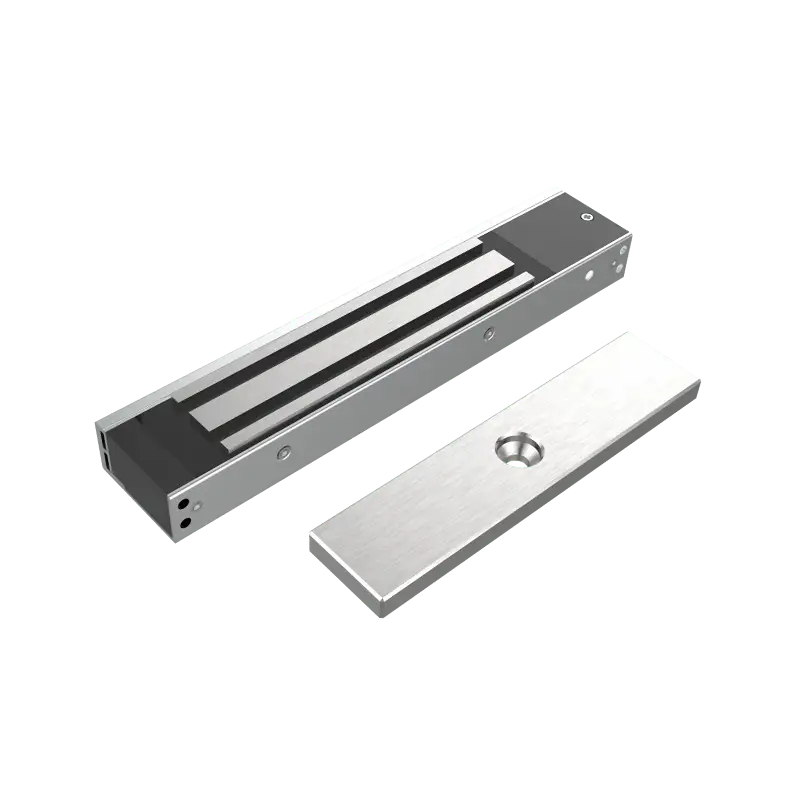

Reliable 220kg Magnetic Lock DE200ML with Signal Output For Single Doors
Product Overview
With its anti-residual magnetism design, the lock enables smooth door release and improves overall safety. Meanwhile, the integrated signal output allows real-time status monitoring, thereby simplifying system integration and reducing maintenance efforts.
Product Features
Broad Applicability
The YGS-DF single-door fireproof electromagnetic lock is commonly used in single-door locations such as office glass doors, emergency exits, and warehouse entrances and exits. Its design of automatically unlocking when power is off and low energy consumption is particularly suitable for long-term unattended environments. The waterproof and fireproof lock body structure ensures high durability, easy installation and high compatibility. The double-layer insulated magnetic drive design eliminates mechanical failure problems by relying on electromagnetic force drive, ensuring high security and durability of the lock.
| Specifications & Certifications | ||
|---|---|---|
| Parameter | Specification | Remark |
| Model | DE200ML | Standard type |
| Holding Force | 220kg ±20% | High magnetic holding force |
| Voltage | DC 12V | Stable voltage input |
| Working Current | 380mA | Rated operating current |
| Inrush Current | ≤2.5A | Peak startup current |
| Signal Output | NO / NC / COM | Lock status monitoring feedback |
| Lock Body Size | 238 × 47 × 28 mm | Compact footprint design |
| Armature Plate Size | 165 × 38 × 10.5 mm | Matching armature plate |
| Door Type | Wooden / Glass / Metal / Fire Door | Wide compatibility with multiple door types |
| Operating Temperature | -10°C ~ +55°C (14°F ~ 131°F) | Wide operating temperature range |
| Surface Temperature | ≤ Ambient +20°C | Safe operation with low heat generation |
| Humidity | 0–90% RH | For indoor dry environment use |
| Surface Finish | Anodized Silver | Corrosion-resistant surface treatment |
| Weight | 1.7kg | Standard net weight |
| Protection Level | IPX0 | For indoor installation only |
| Packing List | |||
|---|---|---|---|
| No. | Part Name / Item | Quantity | Remark |
| 1 | Lock Body | 1 | — |
| 2 | Armature Plate | 1 | — |
| 3 | Mounting Accessories Kit | 1 | Full set of mounting hardware included |
| 4 | Armature Plate Positioning Installation Sticker | 1 | For installation positioning |
| 5 | Product User Manual | 1 | Includes product qualification certificate |
